Doc: A06879 rev02, PN: 6515196

The following instructions are only applicable to the battery charger Micropower SL.
The wall stand is only suitable for model codes 1A5B2** and 1A5B3**. See data label (Located on the battery charger).

Instr bok

Read the instructions. The manual contains important safety and operating instructions. Read and follow the manual provided with the battery charger and the instructions here.

IMPROPER FASTENING MAY CAUSE INSTABILITY AND DAMAGE. CHECK FOR SUITABLE SCREWS WHEN SECURING TO THE WALL. FOR GUIDANCE ON APPROPRIATE SCREW SYSTEMS, CONTACT A LOCAL SPECIALIST DEALER.
THE BATTERY CHARGER IS HEAVY, USE LIFTING EQUIPMENT WHEN LIFTING AND MOVING.

Ensure that the wall where the wall stand will be mounted can withstand the load.

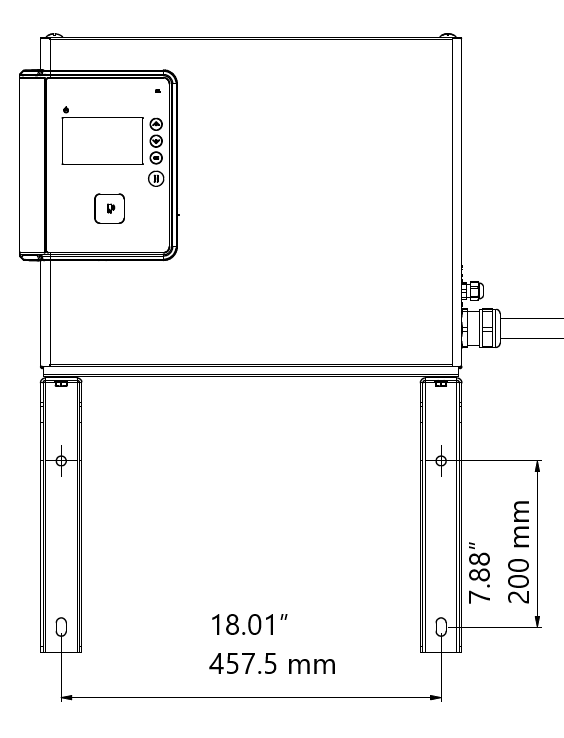

Drill holes in wall according to figure below, or use the drawing found on the wall stand’s packaging.
Securely fasten the wall stand to the wall with suitable screws in all four fixing points (not included).

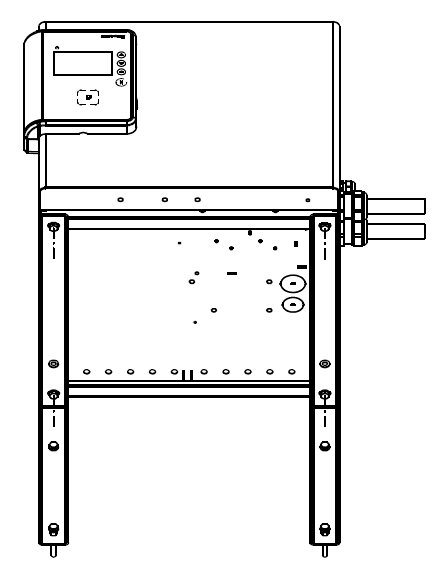

Remove the feet from the charger. Place and center the charger over the holes in the bracket. Secure the charger with the included M8 × 20 mm (approx. 0.79 inch) screws and washers, and tighten them.

Part number for wall stand: 8580272
Included in the kit:
2 pcs Wall stands
4 pcs M8 x 20 mm (approx. 0.79 inch) screws
4 pcs M8 washers

Instr bok

Language variants (US)

ESPAÑOL-US	FRANÇAIS-US

Further information and documentation can be found at docs.micropower-group.com.
