Doc: A06956 rev02, PN: 6515203

The following instructions are only applicable to the battery charger Micropower SL.

Instr bok

Read the instructions. The manual contains important safety and operating instructions. Read and follow the manual provided with the battery charger and the instructions here.

THE BATTERY CHARGER IS HEAVY, USE LIFTING EQUIPMENT WHEN LIFTING AND MOVING.

The Pogo stick can be used in the following ways:

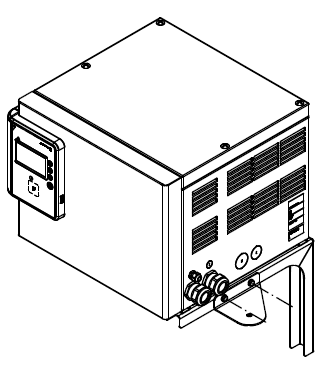

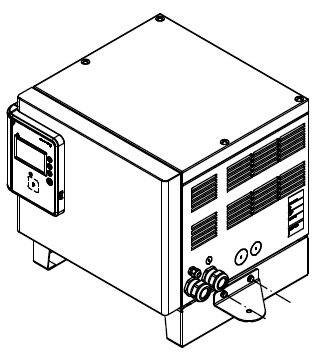

- On the floor, wall, or a rental stand: Center the Pogo stick bracket over the holes on the stand and mount it with M8 × 65 mm (approx. 2.56 inch) screws, washers, and nuts.
- With a universal bracket: Center the Pogo stick bracket over the holes on the universal bracket and mount it with M8 × 20 mm (approx. 0.79 inch) screws, washers, and nuts.

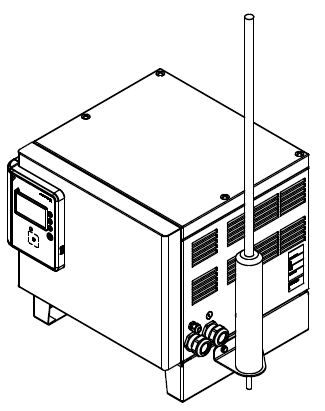

Place the Pogo stick into the hole of the bracket and fasten it with an M12 nut.

Part number for Pogo stick holder: 8580268
Included in the kit:
1 pc Pogo stick bracket
2 pcs M8 × 65 mm (approx. 2.56 inch) screws
2 pcs M8 nuts
4 pcs M8 washers

Instr bok

Language variants (US)

ESPAÑOL-US	FRANÇAIS-US

Further information and documentation can be found at docs.micropower-group.com.
