Doc: A06975 rev02, PN: 6515210

The following instructions are only applicable to the battery charger Micropower SL.

Instr bok

Read the instructions. The manual contains important safety and op­er­at­ing instructions. Read and follow the manual provided with the battery charger and the instructions here.

RISK OF ELECTRIC SHOCK!

ONLY QUALIFIED PERSONNEL SHOULD INSTALL, USE, MAINTAIN AND SERVICE THIS PRODUCT.

DISCONNECT THE BATTERY AND POWER SUPPLY BEFORE MAINTENANCE, SERVICING, OR DISMANTLING.

Power supply: 24 VDC, 2.5 A

  1. Use the key to unlock and open the charger's door.

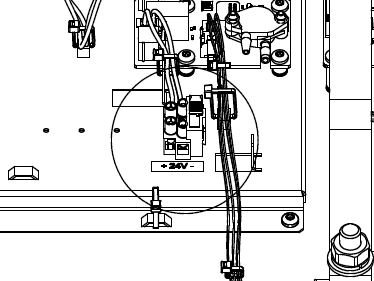

  2. Connect the cables for the external accessory to the terminal block, see figure below.

24vdc 3.PNG

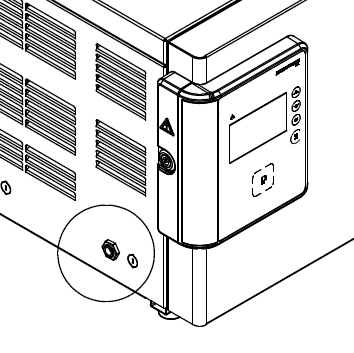

  1. Secure the cables with a cable gland.

24vdc 1.PNG

  1. Close and lock the charger's door.

Part number for DC-kit: 8580284
Part number door key: 1210014

Instr bok

Language variants (US)

ESPAÑOL-US     FRANÇAIS-US
DC kit 24V Mounting instructions QR code es-US     DC kit 24V Mounting instructions QR code FR-US

Further information and documentation can be found at docs.micropower-group.com.
