Doc: A06958 rev02, PN: 6515205

The following instructions are only applicable to the battery charger Micropower SL.

Instr bok

Read the instructions. The manual contains important safety and operating instructions. Read and follow the manual provided with the battery charger and the instructions here.

IMPROPER FASTENING MAY CAUSE INSTABILITY AND DAMAGE. ALWAYS BOLT STACKED BATTERY CHARGERS TO THE WALL IF THE HEIGHT EXCEEDS 130 CM (APPROX. 51 INCHES) AND FASTEN SECURELY TO THE GROUND. THE TOTAL HEIGHT MUST NOT EXCEED 200 CM (APPROX. 78 INCHES). REFER TO THE SECTION BELOW: BETWEEN CHARGERS.
THE BATTERY CHARGER IS HEAVY, USE LIFTING EQUIPMENT WHEN LIFTING AND MOVING.

The universal bracket can be mounted in the following ways:

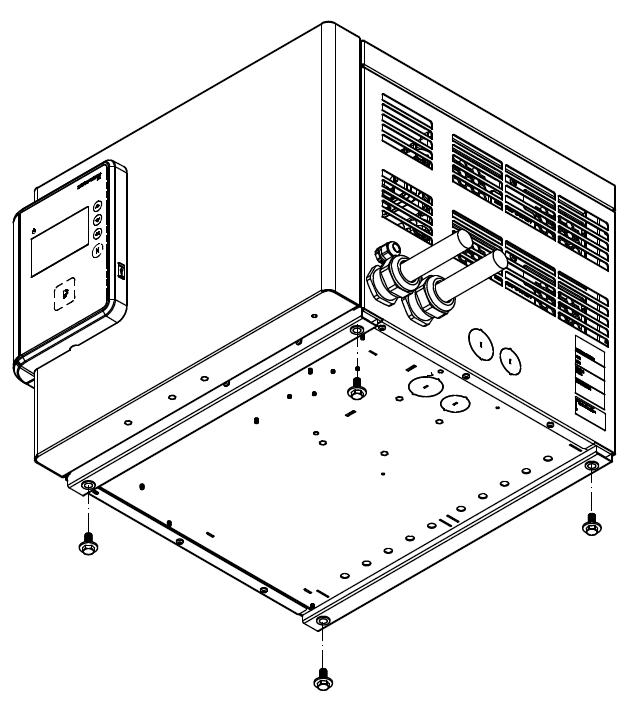

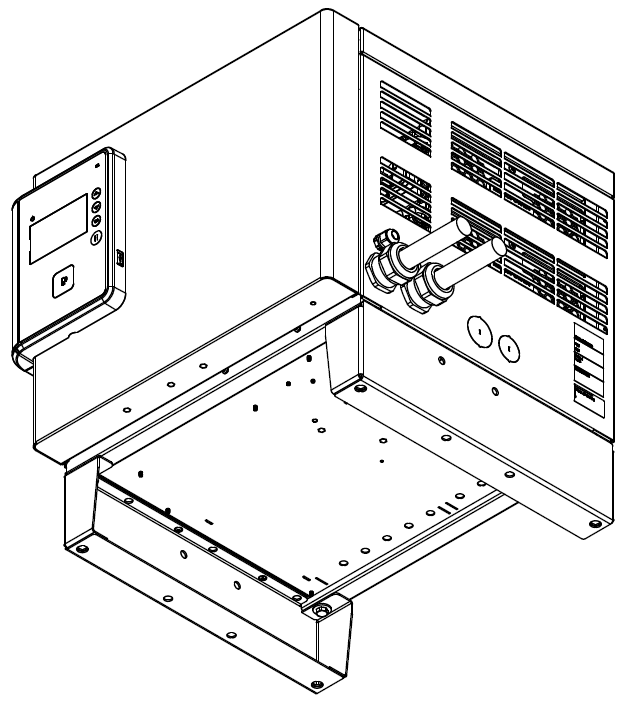

Beneath the charger: Unscrew all feet. Mount the brackets to the charger using four M10 washers and M8 × 20 mm (approx. 0.79 inch) screws.

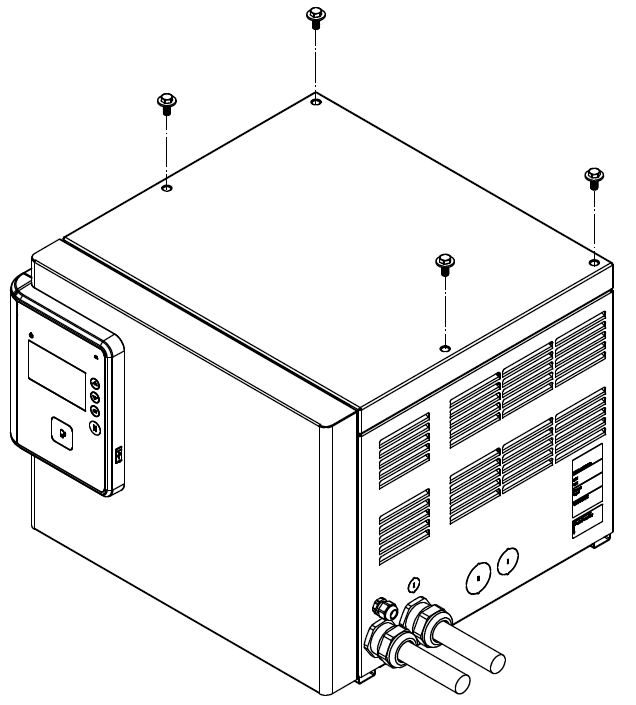

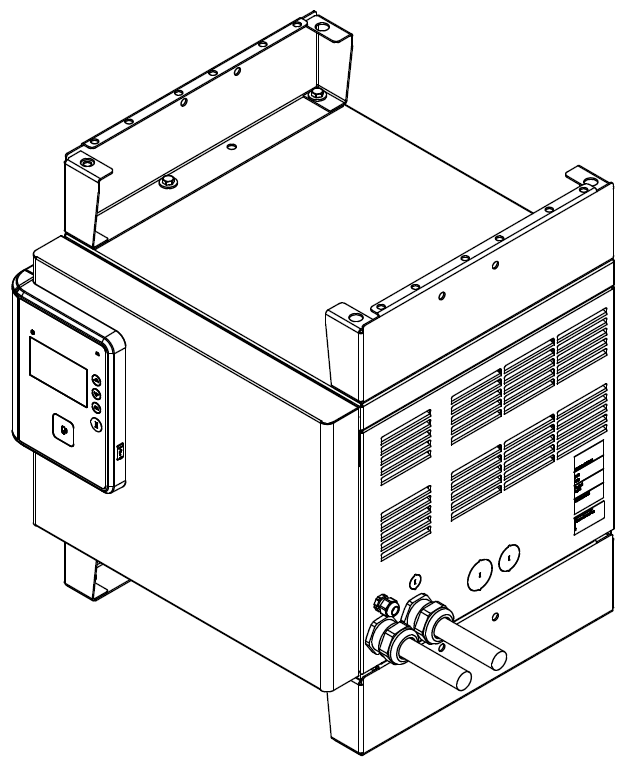

On top of the charger: Unscrew all M8 × 20 mm plastic screws. Mount the brackets to the charger using four M10 washers and M8 × 20 mm (approx. 0.79 inch) screws.

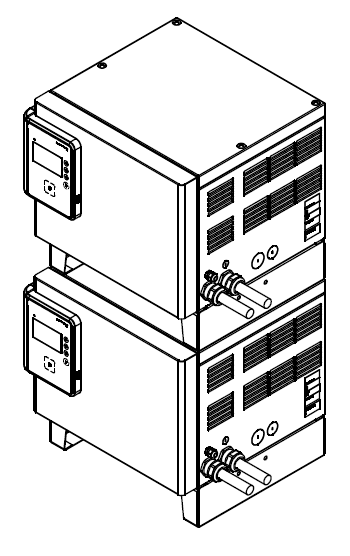

Between chargers: Fasten upper charger using four M10 flat washers and M8 × 20 mm (approx. 0.79 inch) screws.

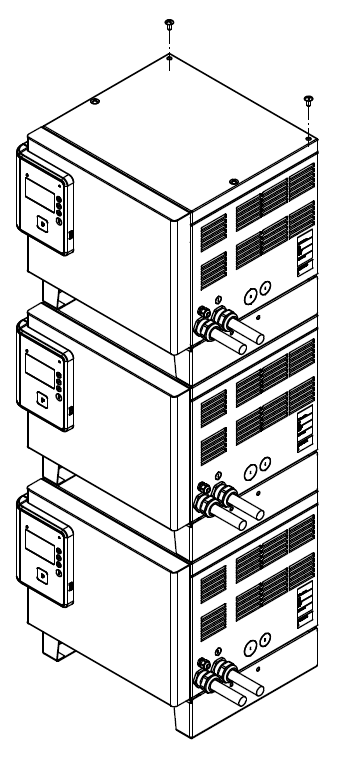

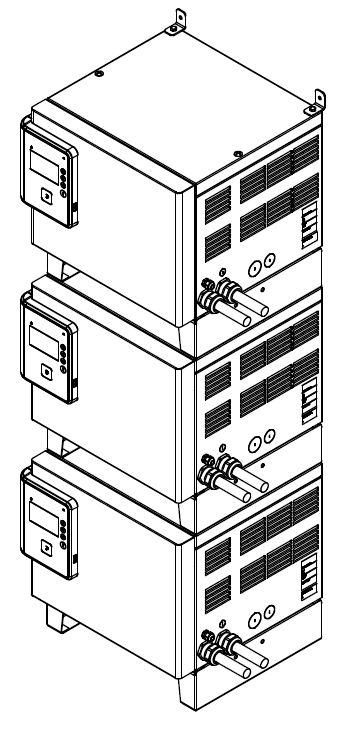

If the height of the stacked chargers exceeds 130 cm (approx. 51 inches), additional bolting to the wall is required. Unscrew the plastic screws at the back of the top charger, place and fasten the two included brackets to the charger, and then mount them onto the wall. Screws for wall mounting are not included.

Part number for universal bracket: 8580271
Included in the kit:
2 pcs Universal brackets
10 pcs M8 × 20 mm (approx. 0.79 inch) screws
8 pcs M10 washers
2 pcs brackets

Instr bok

Language variants (US)

ESPAÑOL-US	FRANÇAIS-US

Further information and documentation can be found at docs.micropower-group.com.
