Doc: A06976 rev02, PN: 6515209

The following instructions are only applicable to the battery charger Micropower SL.

Instr bok

Read the instructions. The manual contains important safety and operating instructions. Read and follow the manual provided with the battery charger and the instructions here.

Ensure the battery has an air system, otherwise a low-pressure alarm will appear on the display.
If alarms of low/high pressure appear on the display, adjust the settings by navigating to:
Menu -> Service -> I/O control -> Output 4 -> Air pump settings
When the battery is connected to the air pump, the air pump runs for 3 minutes and pauses for 12 minutes by default.

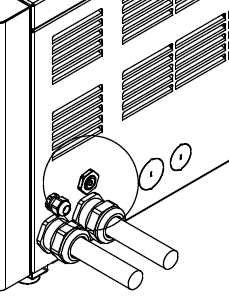

The air tube will be found at location seen in figure below.
If necessary, connect the air tube to the air adapter.

Optional test:

Control the settings for low pressure (Alarm low) by removing the air tube in the last battery cell.
Control the settings for high pressure (Alarm high) by clamping the air tube.

Part number for air pump 400 V/50 Hz 48 V: 8580280
Part number for air pump 400 V/50 Hz 80 V: 8580420
Part number for dual air pumps 400 V/50 Hz 120 V: 8580311

Instr bok

Language variants (US)

ESPAÑOL-US	FRANÇAIS-US

Further information and documentation can be found at docs.micropower-group.com.
