Doc: A07432 rev02, PN: 6515218

The following instructions are only applicable to the battery charger Micropower ST.
Chargers with model code 1AA64** will change to 1AA65** when equipped with this accessory because of the extended charger height. Dimensions can be found in the user manual.

Instr bok

Read the instructions. The manual contains important safety and op­er­at­ing instructions. Read and follow the manual provided with the battery charger and the instructions here.

RISK OF ELECTRIC SHOCK!

ONLY QUALIFIED PERSONNEL SHOULD INSTALL, USE, MAINTAIN AND SERVICE THIS PRODUCT.

DISCONNECT THE BATTERY AND POWER SUPPLY BEFORE MAINTENANCE, SERVICING, OR DISMANTLING.

Power supply: 24 VDC, 2.5 A

  1. Ensure power supply is disconnected.
  2. Remove the lower front cover using TX20 screwdriver.

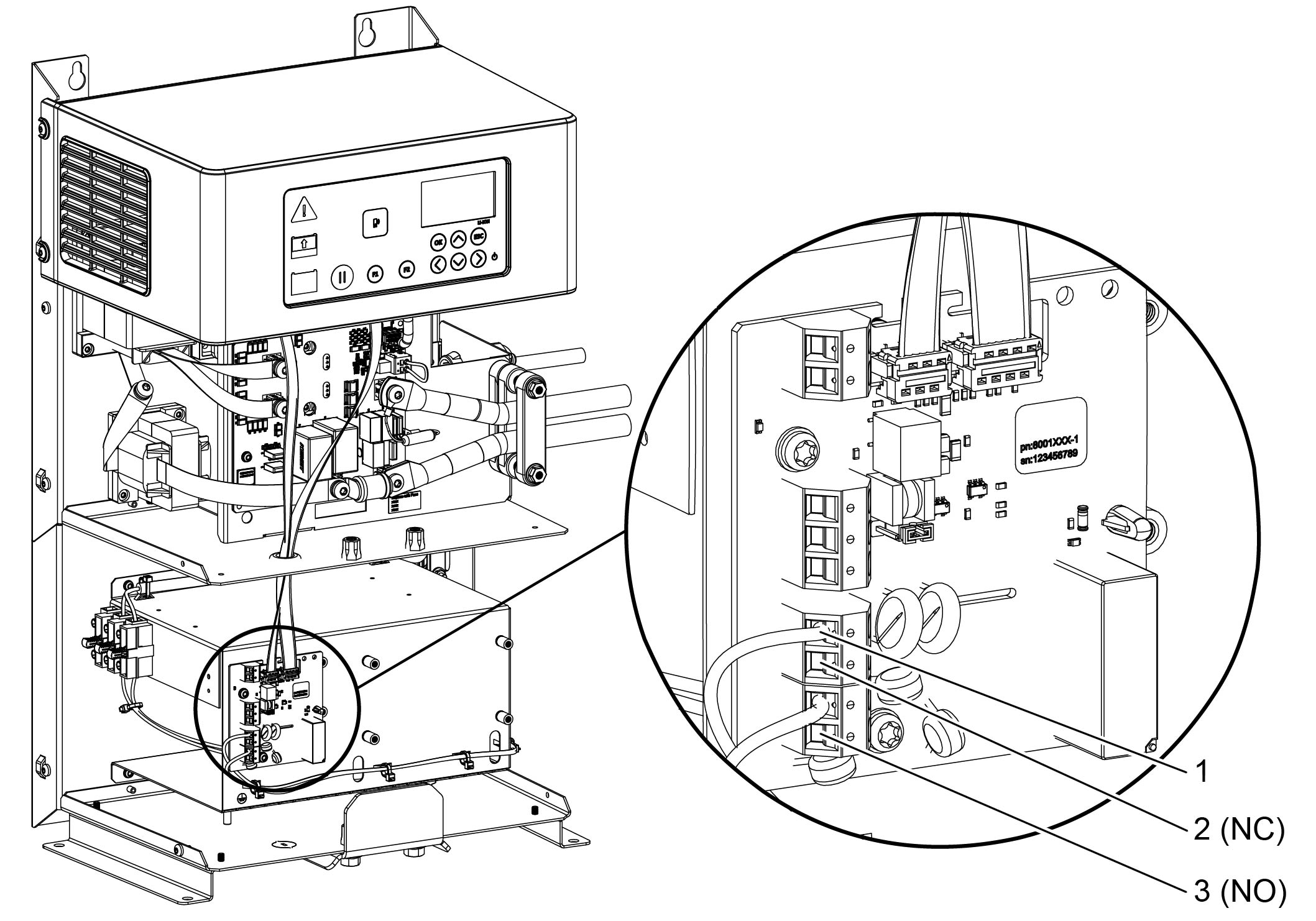

  3. Connect the negative (−) cable to terminal 1, see figure below.
  4. Connect the positive (+) cable as follows:
    1. For a normally closed (ON) power supply circuit, connect to terminal 2 (NC).
    2. For a normally open (OFF) power supply circuit, connect to terminal 3 (NO).
  5. Secure the cable out of the charger using the strain relief.
  6. Reattach the lower front cover.

DC kit_ST.jpg

Instr bok

Language variants (US)

ESPAÑOL-US     FRANÇAIS-US
DC kit 24V Mounting instructions QR code ST es-US     DC kit 24V Mounting instructions QR code ST fr-US

Further information and documentation can be found at docs.micropower-group.com.
