Doc: A07431 rev02, PN: 6515217

The following instructions are only applicable to the battery charger Micropower ST.
Chargers with model code 1AA64** will change to 1AA65** when equipped with this accessory because of the extended charger height. Dimensions can be found in the user manual.

Instr bok

Read the instructions. The manual contains important safety and operating instructions. Read and follow the manual provided with the battery charger and the instructions here.

Output: 24 VAC.
Maximum load 20 VA.
The water valve kit's default setting is to be active during the last 10 minutes of charging. This can be adjusted by navigating to Menu -> Service -> I/O control -> Remote output -> Water. If the battery is disconnected before this, the water filling will not be enabled.

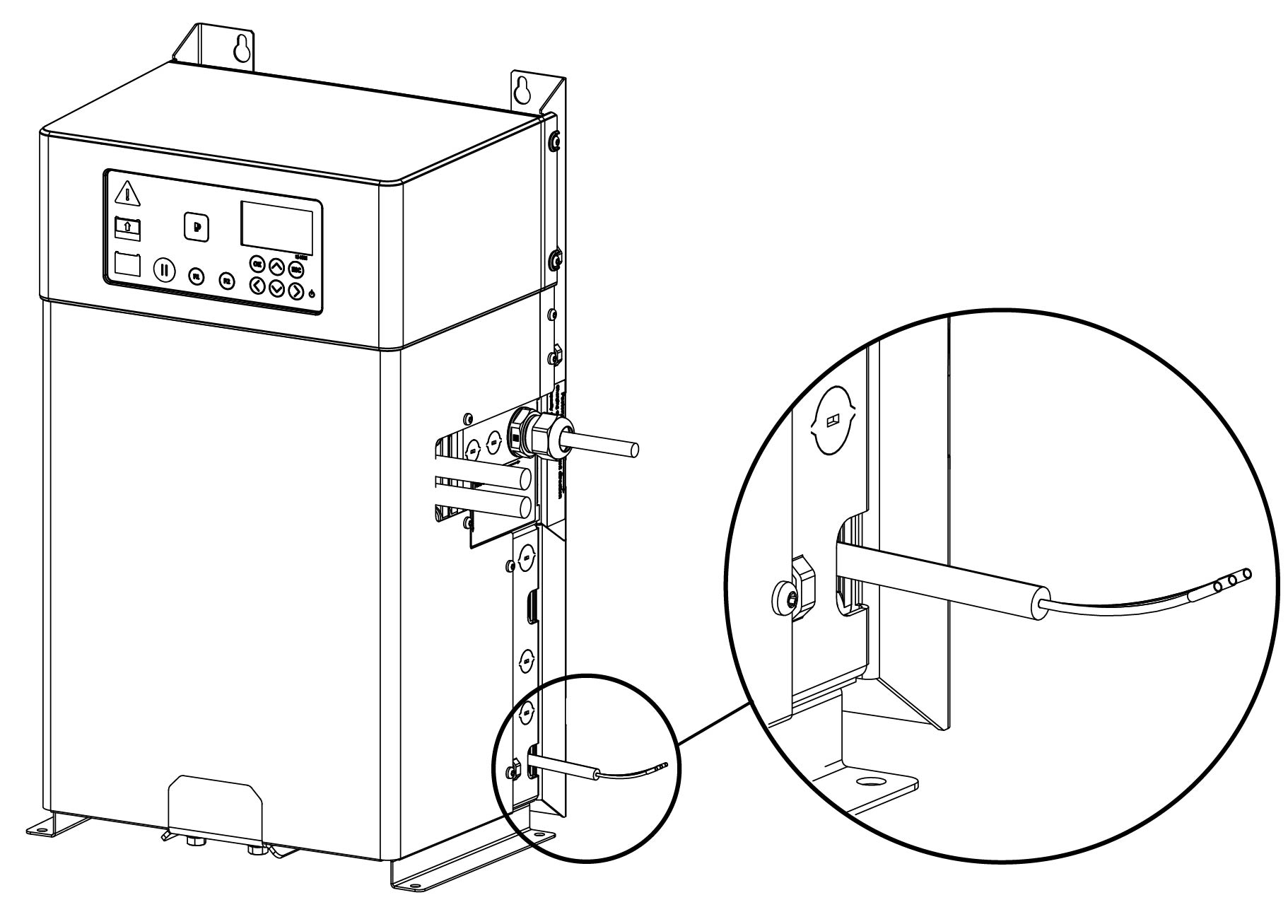

Locate the cable as shown in figure below. Cable length 280 cm (approx. 110 inch).
Connect the water valve to the cable.

Instr bok

Language variants (US)

ESPAÑOL-US	FRANÇAIS-US

Further information and documentation can be found at docs.micropower-group.com.
