Doc: A06959 rev02, PN: 6515206

The following instructions are only applicable to the battery charger Micropower SL.

Instr bok

Read the instructions. The manual contains important safety and operating instructions. Read and follow the manual provided with the battery charger and the instructions here.

TO AVOID POTENTIAL DAMAGE TO THE ENCLOSURE AND TO ENSURE STABLE INSTALLATION, MOUNT THE CABLE HOOK ON THE MOUNTING ACCESSORIES OR THE WALL, NOT DIRECTLY ON THE CHARGER ENCLOSURE.

The cable hook can be mounted in the following ways:

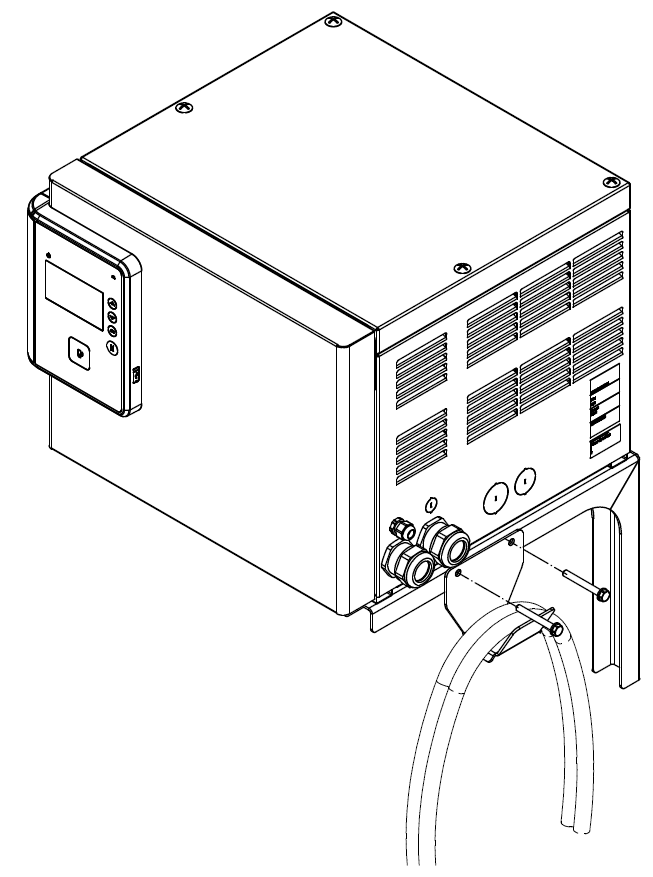

To a stand: use M8 × 65 mm (approx. 2.56 inch) screws, washers, and nuts.

Cable hook 211.PNG

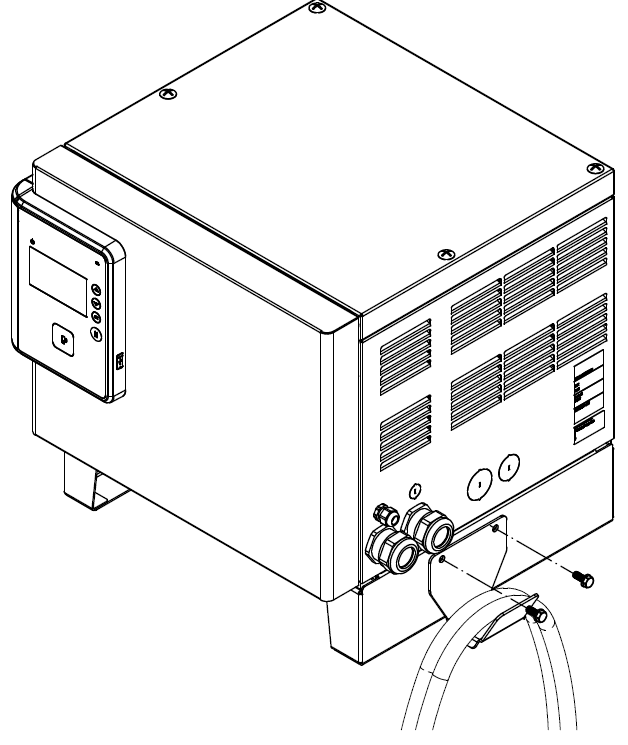

To a universal bracket: use M8 × 20 mm (approx. 0.79 inch) screws, washers, and nuts.

cable hook 122.PNG

Part number for cable hook: 8580266
Included in the kit:
1 pc Cable hook
2 pcs M8 × 65 mm (approx. 2.56 inch) screws
2 pcs M8 × 20 mm (approx. 0.79 inch) screws
4 pcs M8 washers
2 pcs M8 nuts

Instr bok

Language variants (US)

ESPAÑOL-US	FRANÇAIS-US

Further information and documentation can be found at docs.micropower-group.com.
