Doc: A07429 rev02, PN: 6515215

The following instructions are only applicable to the battery charger Micropower ST.
Chargers with model code 1AA64** will change to 1AA65** when equipped with this accessory because of the extended charger height. Dimensions can be found in the user manual.

Instr bok

Read the instructions. The manual contains important safety and operating instructions. Read and follow the manual provided with the battery charger and the instructions here.

Ensure the battery has an air system, otherwise a low-pressure alarm will appear on the display.
If alarms of low/high pressure appear on the display, adjust the settings by navigating to:
Menu -> Service -> I/O control -> Remote output -> Airpump -> Settings
When the battery is connected to the air pump, the air pump runs for 3 minutes and pauses for 12 minutes by default.

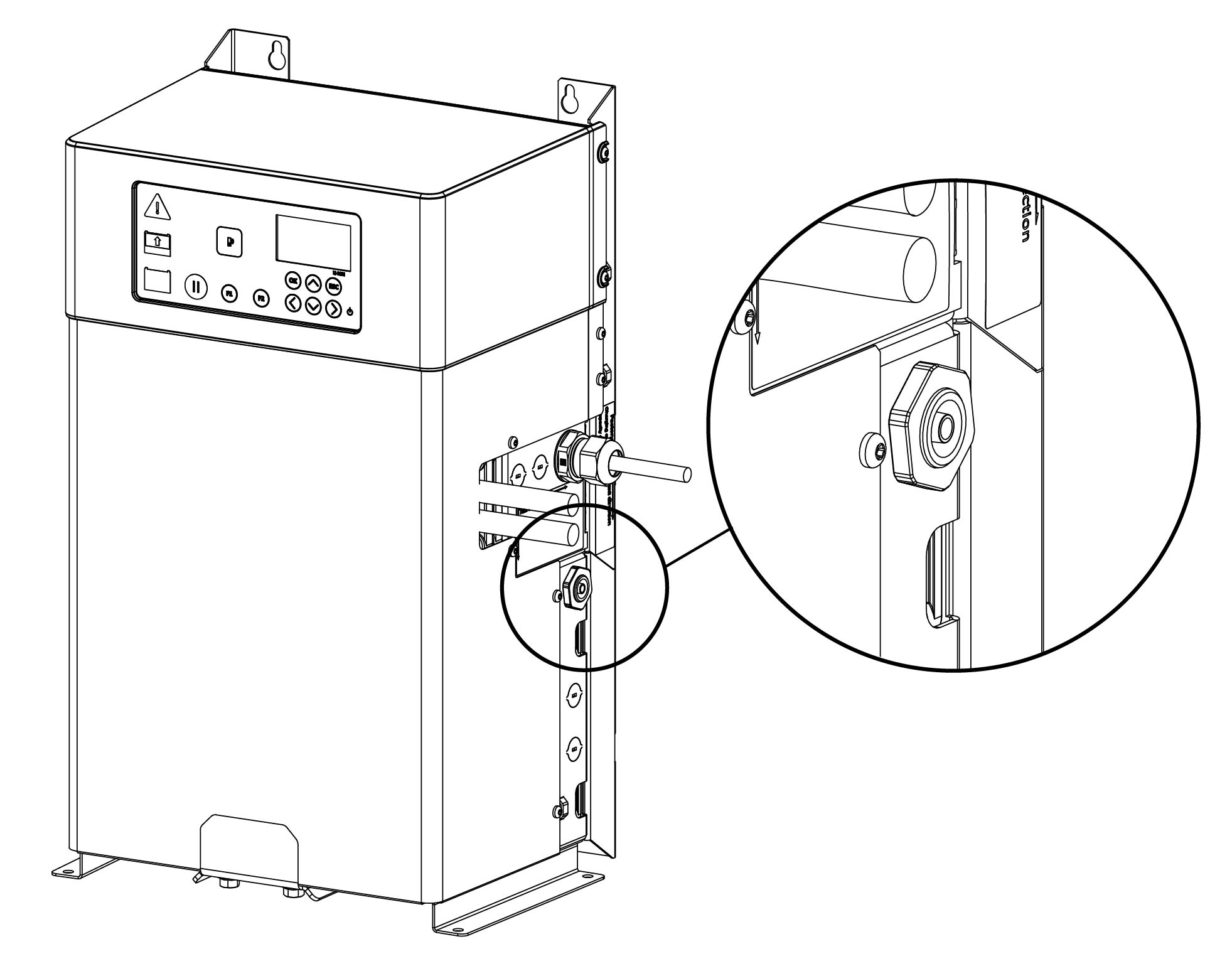

The air tube will be found at location seen in figure below.
If necessary, connect the air tube to the air adapter.

Optional test:

Control the settings for low pressure (Alarm low) by removing the air tube in the last battery cell.
Control the settings for high pressure (Alarm high) by clamping the air tube.

Instr bok

Language variants (US)

ESPAÑOL-US	FRANÇAIS-US

Further information and documentation can be found at docs.micropower-group.com.
