Doc: A08114 rev03A, PN: 7160016

The following instructions are only applicable to the battery charger Micropower ST17−ST90.

Instr bok

Read the instructions. The manual contains important safety and operating instructions. Read and follow the manual provided with the battery charger and the instructions here.

Filter class G2.
The filter mat should be cleaned once a month, or sooner if the mat becomes clogged and airflow through the charger is affected. Replace the mat if it is damaged or cannot be cleaned.

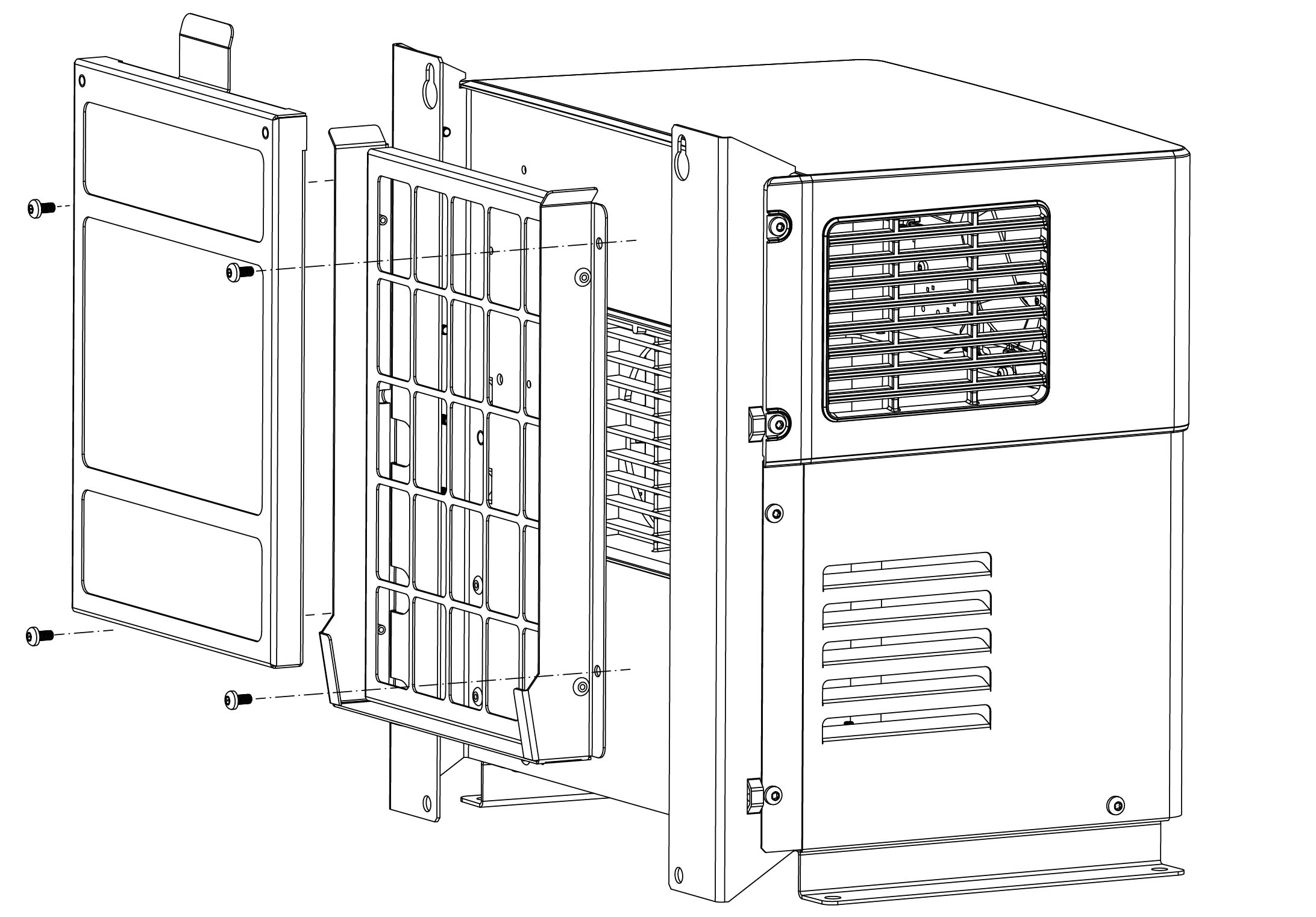

Mount the air filter bracket holder on the back of the charger enclosure using the M4 x 8 mm (approx. 0.32 inch) screws.
Ensure that the air filter mat is correctly fastened in the air filter bracket.
Slide the air filter bracket into the air filter bracket holder until it covers the fan/air inlet.

Air filter ST17-90

Part number for air filter kit: 902097-003
Included in the kit:
1 pc Air filter bracket holder
1 pc Air filter mat: 1128059
1 pc Air filter bracket
4 pcs M4 x 8 mm (approx. 0.32 inch) screws

Instr bok

Language variants (US)

ESPAÑOL-US	FRANÇAIS-US

Further information and documentation can be found at docs.micropower-group.com.
