Doc: A06974 rev02, PN: 6515211

The following instructions are only applicable to the battery charger Micropower SL.

Instr bok

Read the instructions. The manual contains important safety and operating instructions. Read and follow the manual provided with the battery charger and the instructions here.

Output: 24 VAC.
Maximum load 20 VA.
The water valve kit's default setting is to be active during the last 10 minutes of charging. This can be adjusted by navigating to Menu -> Service -> I/O control -> Output 4 -> Function. If the battery is disconnected before this, the water filling will not be enabled.

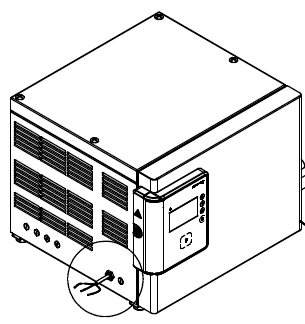

Locate the cable as shown in figure below. Cable length 280 cm (approx. 110 inch).

Water kit 1.PNG

Connect the water valve to the cable.

Part number for water valve kit: 8580281

Instr bok

Language variants (US)

ESPAÑOL-US	FRANÇAIS-US

Further information and documentation can be found at docs.micropower-group.com.
