Doc: A06955 rev02, PN: 6515202

The following instructions are only applicable to the battery charger Micropower SL.

Instr bok

Read the instructions. The manual contains important safety and op­er­at­ing instructions. Read and follow the manual provided with the battery charger and the instructions here.

The balance block must be mounted on a stand or universal bracket, not directly on the enclosure.

Instructions for balance block with floor stand, wall stand or universal bracket:

  1. Unscrew two of the four M8 plastic screws from the top of the enclosure.
    Balance block 1.PNG

  2. Mount bracket on top of the enclosure with washers and M8 × 20 mm (approx. 0.79 inch) screws.
    Balance block 2.PNG

  3. Mount the balance rod on the lower part of the accessory beneath the enclosure. For a universal bracket, use an M8 × 20 mm (approx. 0.79 inch) screw. For any other type of stand, use an M8 × 65 mm (approx. 2.56 inch) screw.
    Balance block 3.PNG

  4. Mount second M8 × 20 mm (approx. 0.79 inch) screw against bracket on top of the enclosure.

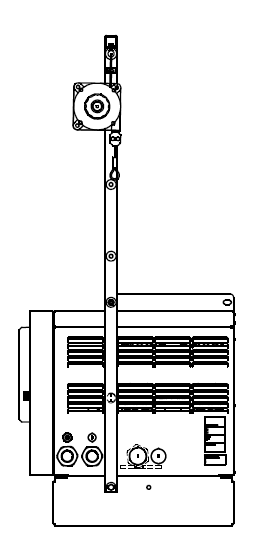

  5. Mount the eye bolt onto the balance rod, then attach the balance block to the eye bolt.
    Balance block 4.PNG

Instructions for balance block with rental stand:

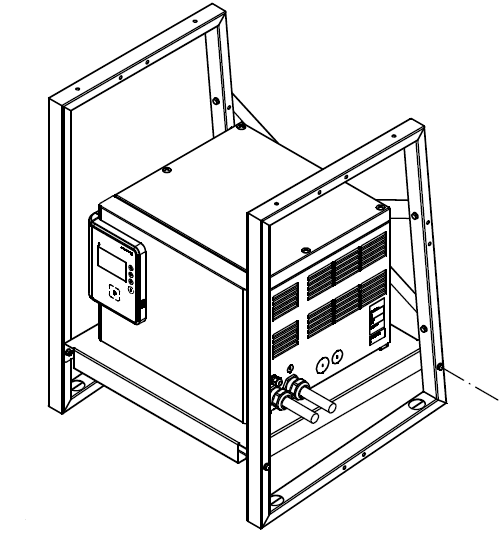

  1. Unscrew the M8 × 65 mm screw.
    Balance block 6.PNG

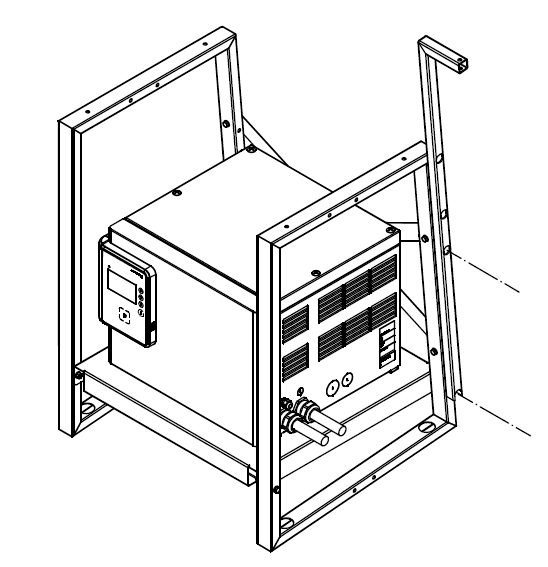

  2. Place the balance rod in alignment with the rental stand and mount it using two M8 × 65 mm (approx. 2.56 inch) screws.
    Balance block 7.PNG

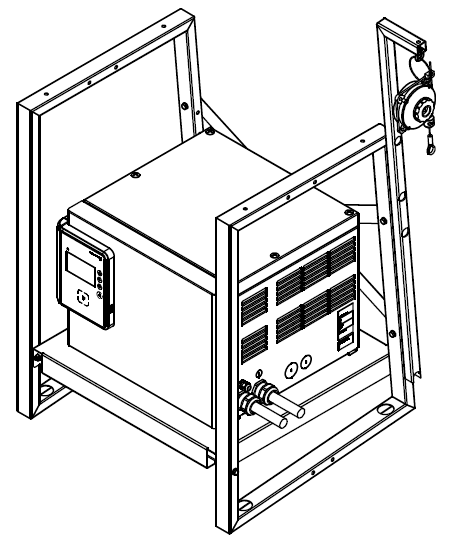

  3. Mount the eye bolt onto the balance rod, then attach the balance block to the eye bolt.
    Balance block 8.PNG

Part number for balance block: 8580269
Included in the kit:
1 pc Balance block, capacity 4.5–9 kg (9.9–19.8 lbs)
1 pc M8 flange nut
1 pc M8 eye bolt
1 pc Balance block rod
1 pc M8 × 65 mm (approx. 2.56 inch) screw
2 pcs M8 nuts
4 pcs M8 × 20 (approx. 0.79 inch) screws
5 pcs M8 washers

Instr bok

Language variants (US)

ESPAÑOL-US     FRANÇAIS-US
Balance block Mounting instructions QR code es-US     Balance block Mounting instructions QR code fr-US

Further information and documentation can be found at docs.micropower-group.com.
