Doc: A06957 rev02, PN: 6515204

The following instructions are only applicable to the battery charger Micropower SL.

Instr bok

Read the instructions. The manual contains important safety and op­er­at­ing instructions. Read and follow the manual provided with the battery charger and the instructions here.

THE BATTERY CHARGER IS HEAVY, USE LIFTING EQUIPMENT WHEN LIFTING AND MOVING.

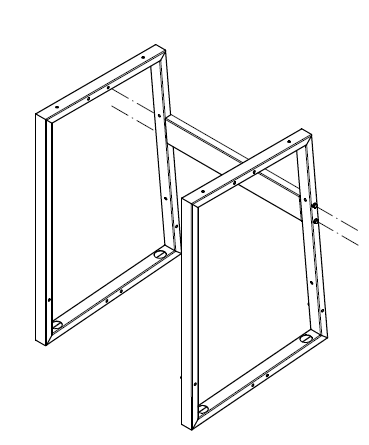

  1. Fasten the back bracket to the frames using four M8 × 65 mm (approx. 2.56 inch) screws, washers, and nuts.
    Rental 1.png

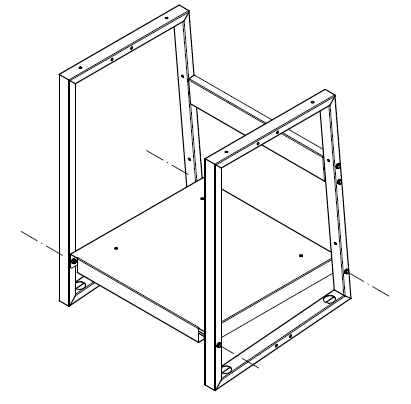

  2. Securely fasten the bracket between the two frames using four M8 × 65 mm (approx. 2.56 inch) screws, washers, and nuts.
    Rental 2.png

  3. Remove the feet from the charger.

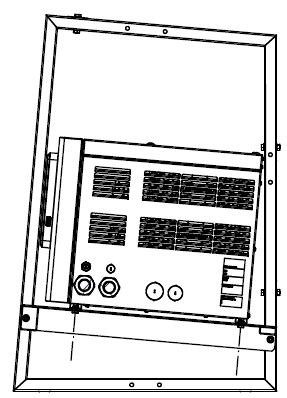

  4. Place and center the charger over the holes in the bracket. Mount and tighten using four M8 x 20 mm (approx. 0.79 inch) screws and washers.
    Rental stand 3.PNG

  5. Mount optional accessories.

Part number for rental stand: 11280086
Included in the kit:
2 pcs Rental stand frames
1 pc Rental stand bracket
1 pc Back bracket
8 pcs M8 x 65 mm (approx. 2.56 inch) screws
4 pcs M8 x 20 mm (approx. 0.79 inch) screws
20 pcs M8 washers
8 pcs M8 nuts

Instr bok

Language variants (US)

ESPAÑOL-US     FRANÇAIS-US
Rental stand Mounting instructions QR code es-US     Rental stand Mounting instructions QR code fr-US

Further information and documentation can be found at docs.micropower-group.com.
